Zip-Clip 15kg Wire Reel in Dispenser Box 200m
Product Description
The ultimate flexible solution for tailor made drop lengths.
Product Features
-
Angular performance:
Vertical - 15kg - 100% load
15° - 14.40kg - 96% load
30° - 12.9kg - 86% load
45° - 10.5kg - 70% load
60° - 7.5kg - 50% load

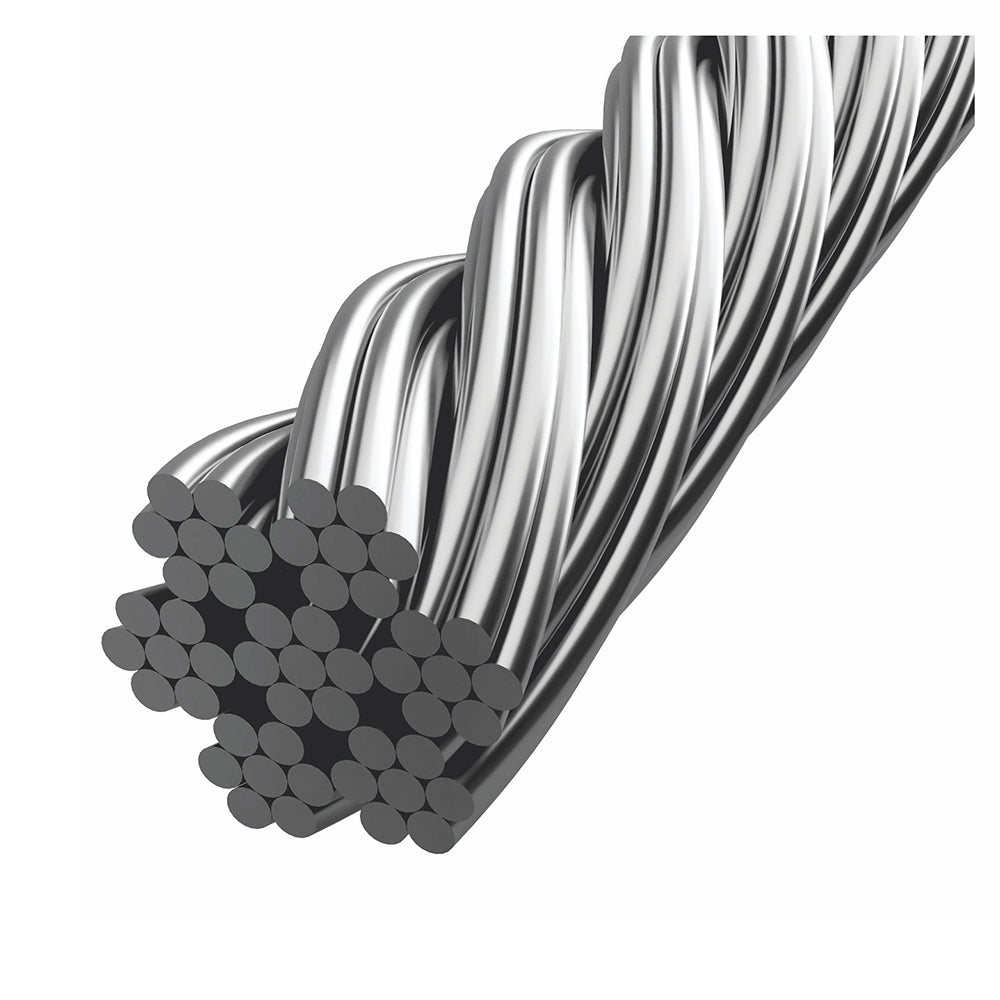

- 7 x 7 wire rope construction
- Safety factor 5:1
- Can be used as a wrap around application and with a wide range of brackets
- Wire supplied in dispensing box to avoid risk of wire bird nesting
- Any spare material can be used on following projects
- Ideal for long drop lengths
Application

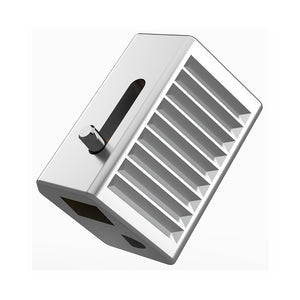

- To be used as a standalone item or in conjunction with Zip-Clip Rize KL50
Technical Specifications
| Colour: | Silver |
| Finish: | Brushed Chrome |
| Material: | Galvanised Mild Steel |
| Construction: | 7 x 7 (6/1) RHRL |
| Safe Working Load of the Wire: | 15kg |
| Tensile Strength: | 1960 N/mm² |
| Length: | 200m |
| Cable Thickness: | 1.19mm |
| Weight: | 1.40kg |
Technical Documents
| Technical Document: | Download |
