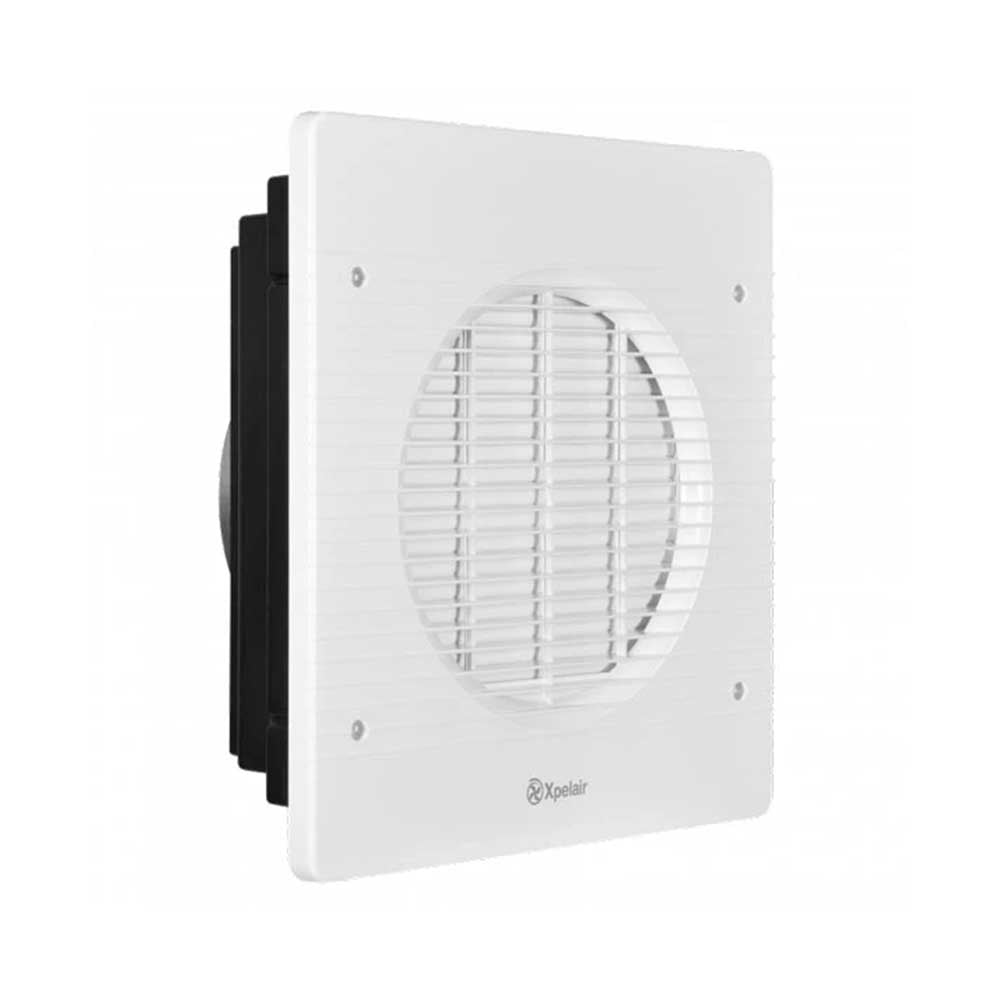

Xpelair X6 Flush Extractor Fan

Suitable for installation into double brick walls. The wall hugging, low profile white fascia is styled to blend in cleanly with surroundings. For safety, a finger guard disintegrated into the ultra slim high gloss ABS fascia and the exterior wall grille design. On WX9 and WX12 units, a positive plug socket assembly provides a means of isolation for service access without the safety risk of accidental disconnection. All WX models come complete with a wall mounting kit which includes a wall liner. Both the WX9 & WX12 are reversible (not 6”) and now feature totally enclosed external motors providing constant volume outputs. Sealed for life maintenance free bearings, running costs are impressively low and when not infuse the silent electro-thermal shutter cassette closes silently against back draughts. All models are IP55 rated and suitable for 220V-240V 50Hzmains operation. Class B insulation for operation in ambient temperatures up to 40°Cand are fitted with a thermal cut out.

Product Features

• 6” fans cannot be speed controlled, however, humidity, movement and time delay is possible
• Extract Performance (m^3/h) = 246
• Extract Performance (I/s) = 68
