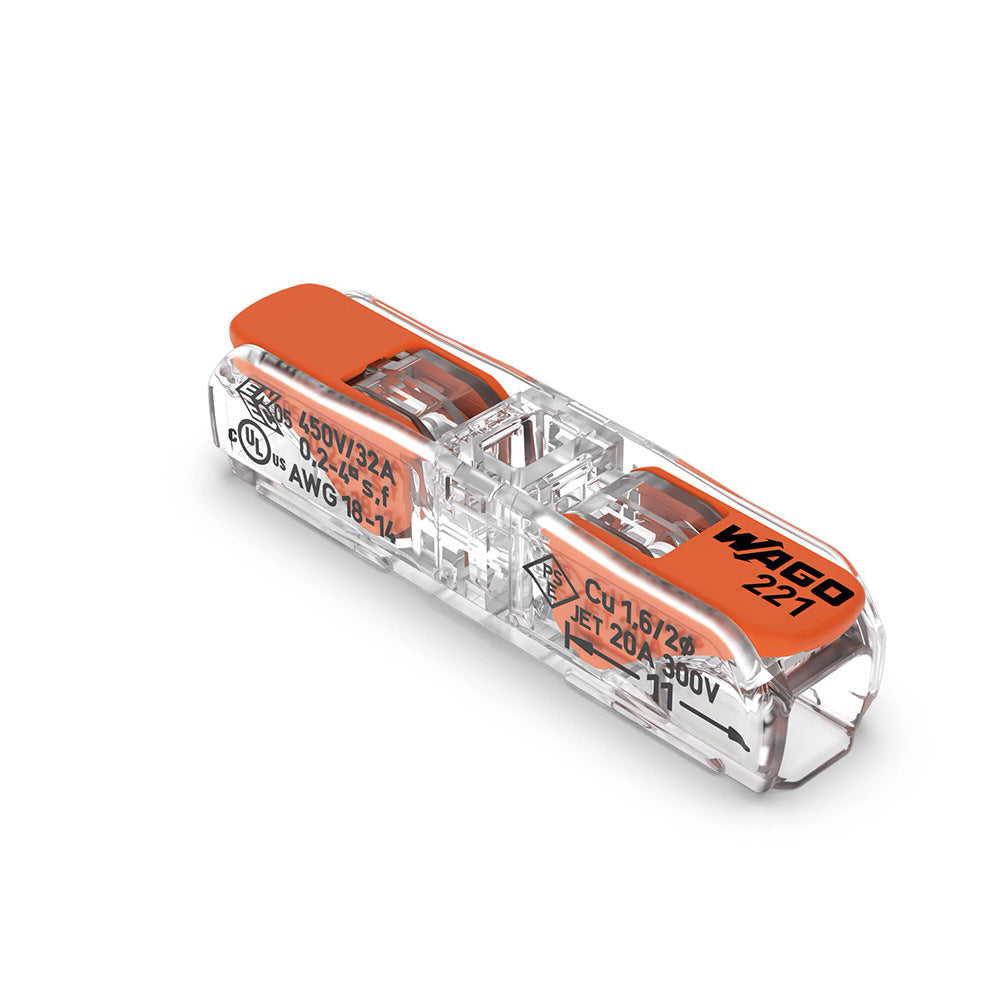

Wago 221 Lever Type Inline Splicing Connector 0.2 - 4mm² - Orange
Adding product to your cart
Product Description
Product Features
- Inline connection of solid, stranded and fine--stranded conductors from 0.2 to 4mm²
- Slim design saves space in tight areas
- Tool-free connection and disconnection thanks to convenient lever technology
- Use a mounting carrier for fixed and multi-pole wiring
Application
- Electrical installations
- Lighting fixtures
- Control Wiring
Safety Features
- RoHS Compliance Status: Compliant, No Exemption
Technical Specifications
| Colour: |
Transparent / Orange |
| Material: |
Polycarbonate |
| Pack Size: |
1 Piece |
| Connections: |
2 Way |
| Surge Voltage: |
4kV |
| Voltage: |
IEC/EN: 450V / UL 1059: 600V |
| Height: |
8.9mm |
| Width: |
8.1mm |
| Depth: |
35.5mm |
| Strip Length: |
11mm |
| Connection Size: |
Solid Conductor: 0.2 - 4mm² / Stranded Conductor: 0.2 - 2.5mm² / Fine-stranded Conductor: 0.34 - 4mm² |
| Operating Temperature: |
-60 … +105 °C |
| Weight: |
2.4g |
