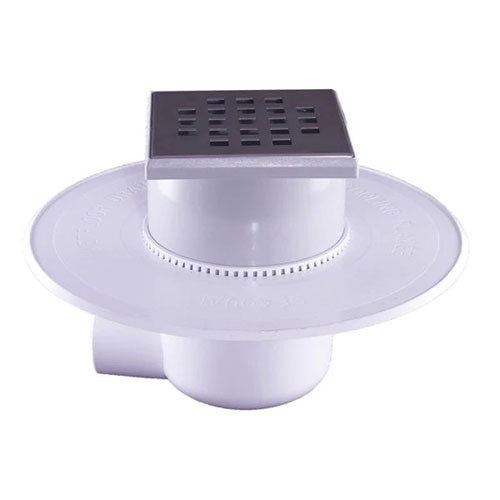

Seaqual Stainless Steel Small Square Hole Lolo Drain

With cement technology improving, slabs are becoming thinner and stronger. To keep up with thesetrends, Seaqual has designed the LoLo Drain - a lower profile version of our tried and testedWetFloor Drain. Each component has been reduced in height to make it easier to install in thin slabs.The LoLo Drain consists of a shortened F-Box with 50mm side outlet and a reduced water/odourseal. Instead of 75mm, the Well Trap is now 50mm. It is provided with our durable large white flangewhich accepts cement, bitumin and paint on waterproofing. M-serts housing the grates can also bereduced to desired height, while still maintaining their square adjustable feature.

Product Features

• Agrément SA certified for use on one-pipe and two-pipe plumbing systems.
• Can be installed with ease in thin slabs.
• Maintains a high plumbing standard.
• Durable and strong.
• 100% Recyclable.
• Damaged components are easy and cost-effective to replace.
• Provided with protective dust covers for use during installation.
• Square shape achieves an improved and easier to lay tiled finish.
• High flow rate up to 48L/min.
• Provide LoLo Drain 50mm Side Outlet in finish of choice
• Fit 50mm S/O F-Box to position shown on drawings
• Use Protective Dust Cover provided on F-Box
• Fit Flange and provide waterproofing
• Use 2nd Protective Dust Cover provided on Flange
• Fit Spigot and Grate and set Grate to height of finished floor (FFL)
• Fit 50mm deep Water/Odour Trap
• Provide tiling or other floor finish flush with Grate
• NOTE: If the Tile Grate selected, cut tiles to size and cement into Tile Pan provided
• Certified ‘fit-for-use’ on single- and dual-pipe plumbing systems
• Min 50mm Well Trap provided
• 5-Year Warranty against manufacturer's defects.

Technical Specifications
