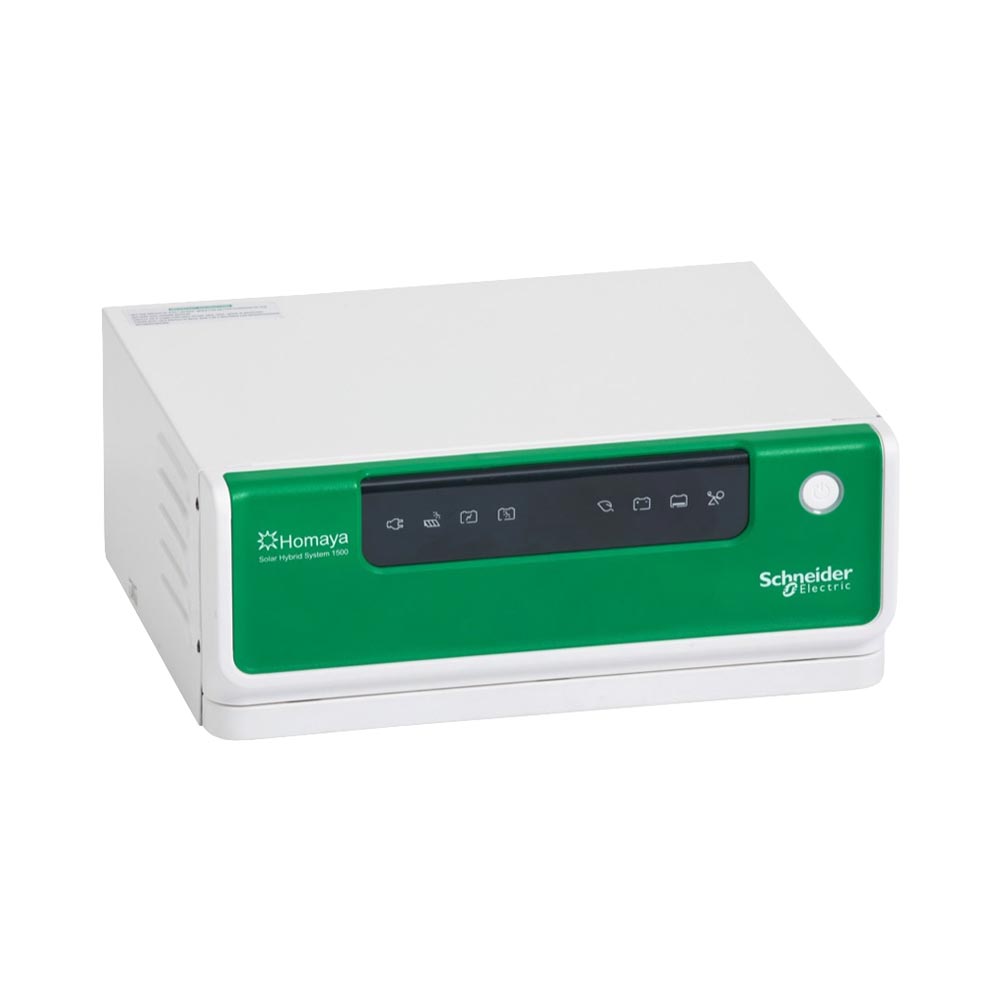

Schneider Electric Hybrid Solar Inverter System 1500
Adding product to your cart
Product Description
Product Features
- Protection - Short-circuit, Overload, High Temperature, Internal Fault, Deep Discharge, Battery Low.
- Solar Panel - Supports up to 1000Wp, 24V Solar Panel Array, Voc Required between 36V to 45V.
- Recommended Battery - 24V Operating Voltage: 100Ah to 200Ah
- Recommended Battery Type: Supports tubular, Flat plate, GEL / VRLA battery
-
Excludes Battery
- Display Indications:
- Mains available
- Battery Charging through Mains or Solar Panel
- Input Voltage regulation Mode
- Power Savings
- Load Output through Battery
- Low Battery Indication
- Overload Indication
- Buzzer Sound Indications:
- Battery ON
- Low Battery Pre-Alarm
- Battery Low Shut Down
- Overload Shutdown Indication
- Short Circuit & ECO / UPS Mode Selection
- 2 Years
Technical Specifications
| Colour: |
Green and White |
| Material: |
Metal and Plastic |
| Wave Type: |
Pure Sine Wave |
| Capacity: |
1500VA |
| Solar Charge Current (Max.): |
40Amp / 24V |
| Voltage: |
- Eco Mode: 100V - 290V
- UPS Mode: 180V - 260V
|
| DC Output: |
12V / 5A |
| AC Output: |
230V / 50Hz |
| Height: |
150mm |
| Width: |
315mm |
| Length: |
375mm |
| Operating Temperature: |
0 to 45°C |
| Operating Humidity: |
95% RH Non Condensing |
| Weight: |
15.66kg |
Technical Documents
