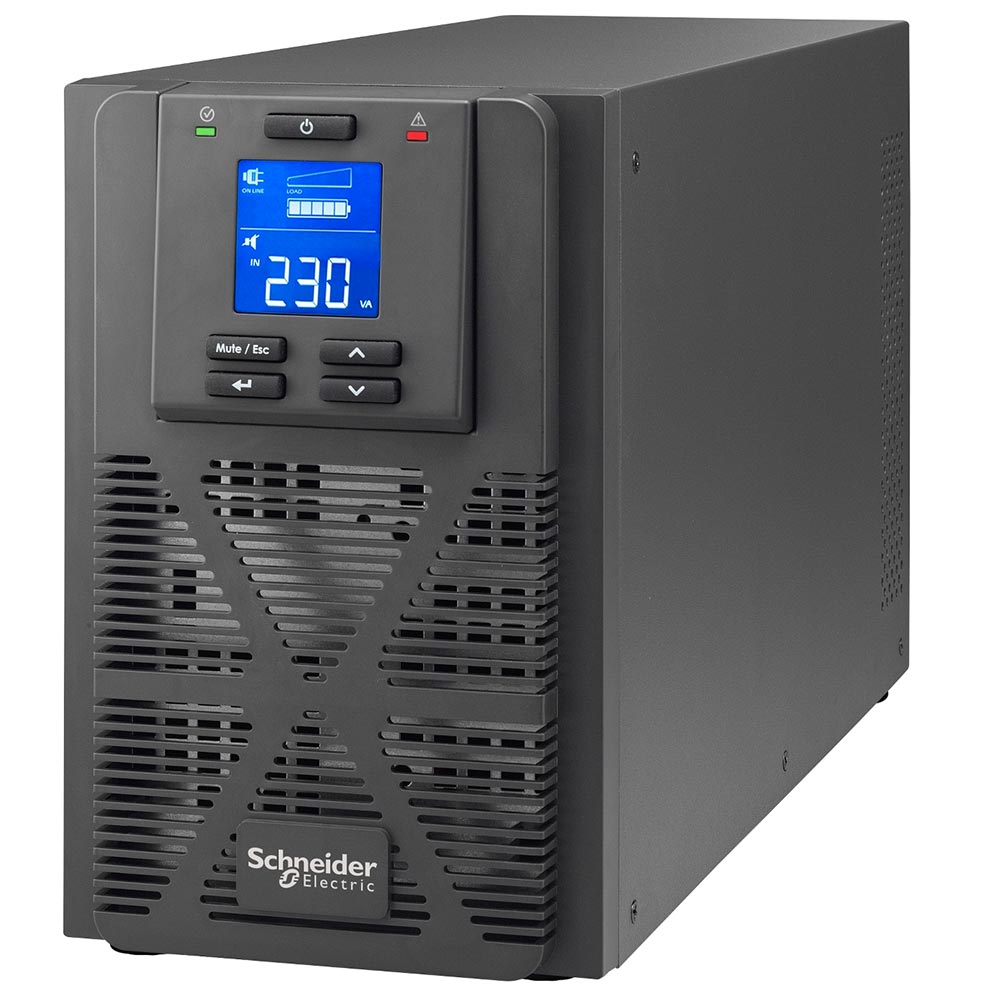

Schneider Electric Easy UPS SRVS 1000VA 230V
Product Description
Easy UPS 1 Ph On-Line provides essential power protection forunstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
Product Features
- Ideal for small to medium sized businesses
- Operates in a vertical mounting position
- Is not rack-mountable
- Uses a 24V Lead-Acid Battery
- Multifunction LCD status and control console
- Houses an alarm notifying when on battery and a distinctive low battery alarm, or a continuous tone for an overload alarm
- Internal bypass (automatic and manual)
- 88% Efficiency at full load
- 2 Years Repair or Replace
Suggested / Optional Accessories
- Easy UPS 1Ph on-line SNMP card - APVS9601
- APC Easy UPS On-Line SRV Modbus Card - SRVSMB001
- Easy UPS 1Ph on-line dry contact card - VGLS9901I
What's in the Box
- Basic UPS signalling RS-232 cable
- CD with software
- User manual
- USB cable
Safety Features
- CE Product Certification
- Conformance Standards:EN/IEC 62040-1 and EN/IEC 62040-2
Technical Specifications
| Colour: | Black |
| Finish: | Semi-Matt |
| Socket Type: | IEC 60320 C13 |
| Plug Type: | IEC 60320 C14 |
| Number of Sockets: | 3 |
| Battery Type: | Lead-Acid |
| Battery Charge Time: | 4 hours |
| Battery Life: | 3 - 5 Years |
| Battery Charge Power: | 38W rated |
| Number of Batteries: | 1 |
| Display and Signals: | Multifunction LCD status and control console |
| Waveform: | Sine Wave |
| Noise Level: | 50 dBA |
| Rated Power: | 800W / 1000VA |
| Input Voltage: | 230V |
| Output Voltage: | 230V |
| Input Voltage Range: | 220V - 240V |
| Height: | 223mm |
| Width: | 145mm |
| Length: | 288mm |
| Cable Length: | 1500mm |
| Operating Temperature: | 0 to 40 °C |
| IP Rating: | IP20 |
| Weight: | 9.3kg |
