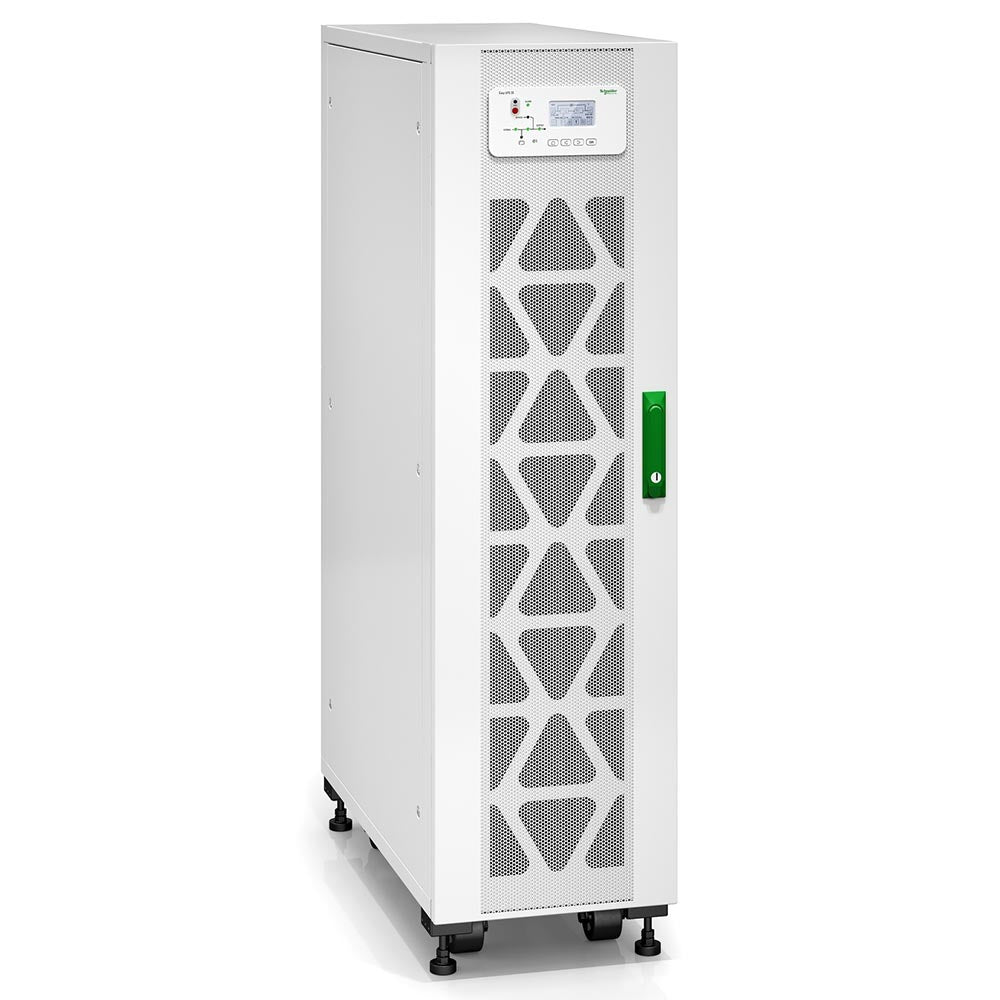

Schneider Electric Easy UPS 3S 20 kVA 400V


Schneider Electric Easy UPS 3S 20 kVA 400V
Regular price
R 190,179.00
Sale price
R 190,179.00
Regular price
Unit price
per
FREE delivery in 4 to 8 weeks

When will I get my order?

×
Estimated Delivery Times

Main Centers

Johannesburg

Durban

Pietermaritzburg

Cape Town

Port Elizabeth

Bloemfontien

East London

George

Nelspruit

Polokwane

Newcastle

Richards Bay

1 - 3 Business Days
Regional Areas 2 - 5 Business Days
Outlying Areas 2 - 7 Business Days
International Please contact out sales department
Stocked items will be dispatched on the same day if payment is made before 13:00pm.
E3SUPS20KHB1
Technical Specifications


Product Description

Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 20 kVA, 400V 3-phase UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 2 internal 7Ah modular battery strings, expandable to 3 strings for extended runtime.

Product Features
  • Has 2 x internal 7Ah modular battery strings and is expandable to 3
  • It is a double conversion online UPS
  • Is USB compatible
  • View Efficiency Graph
  • 1 Year On-site Repair or Replace with factory authorized Start-Up

Suggested / Optional Accessories
  • Easy UPS 3 Series Network Card - E3SOPT001
  • Easy UPS 3S Parallel Kit - E3SOPT002
  • Easy UPS 3S Parallel Kit with 15m cable - E3SOPT016
  • Temperature sensor Kit for external battery system - E3SOPT003
  • Easy UPS 3S Cold Start Kit - E3SOPT004
  • Easy UPS 3S Battery String - E3SBT4
  • Easy UPS 3S Empty Modular Battery Cabinet - E3SXR6
  • Easy UPS 3S Battery Breaker Box - E3SOPT007

What's in the Box
  • Dust filter
  • Installation guide

Safety Features
  • CE, EAC and RCM Product certifications
  • Confomity standards: IEC 62040-1-1; IEC 62040-2; IEC 62040-3; IEC 62040-4; and ISTA 2B
  • Is mercury free
  • Product Enviromrntal Profile

Technical Specifications
Colour: White
Battery Type: Valve-Regulated Lead-Acid
Battery Voltage: 240V
Number of Batteries: 2 Filled and 1 Free slot
Noise Level: 60dBA
Rated Power: 20kW - 20kVA
Input Voltage: 400 V 3 Phases
Output Voltage: 400 V 3 phases
Input Voltage Range: 380 - 415 V
Output Frequency: 50 - 60Hz sync to mains
Height: 140mm
Width: 380mm
Length: 928mm
Operating Temperature: 0 - 40°C
IP Rating: IP20
Weight: 446kg

Technical Documents
Technical Document: Download
