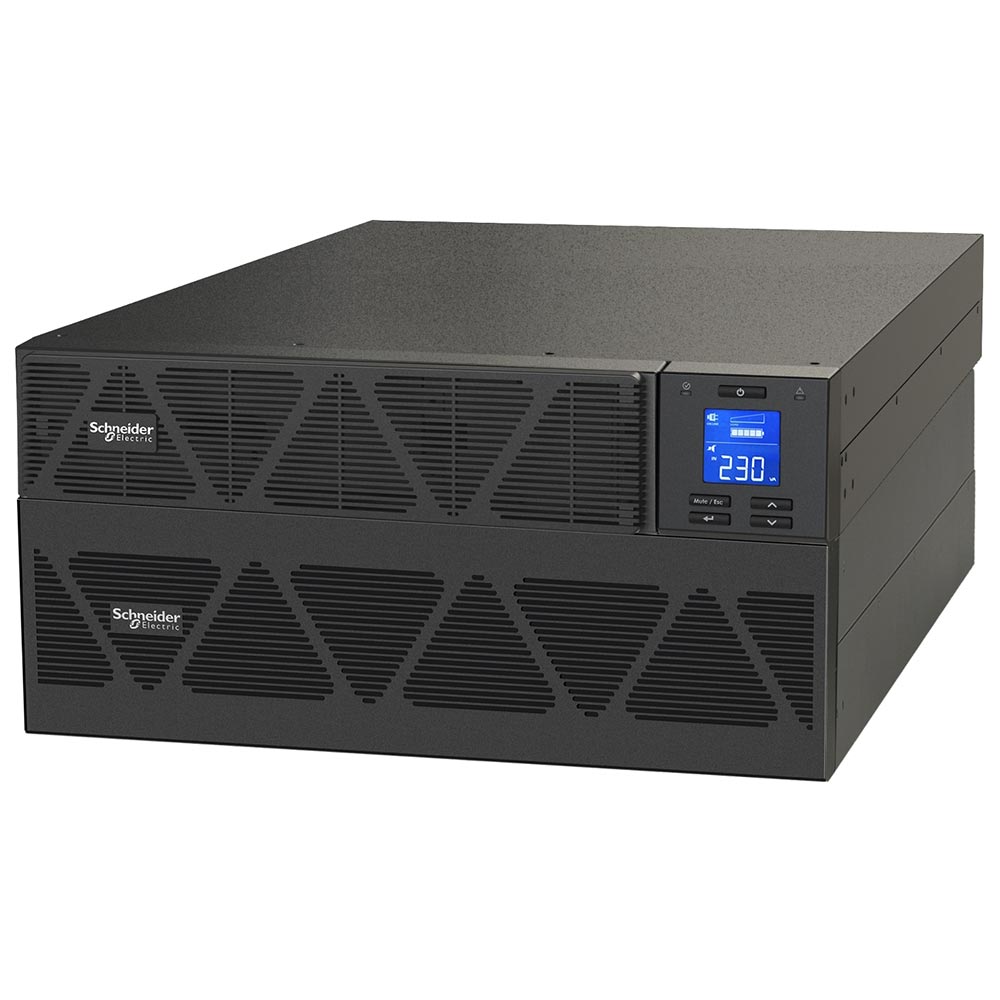

Schneider Electric Easy UPS 1Ph SRVS 10000 VA with Rail Kit and Battery Pack
Adding product to your cart
Product Description
Product Features
- Double conversion online UPS Type
- Front mounting location
- Rack mountable
- Preferable to mount lower in a rack
- Horizontal mounting position
- Is USB Compatible
- Surge energy rate of 600J

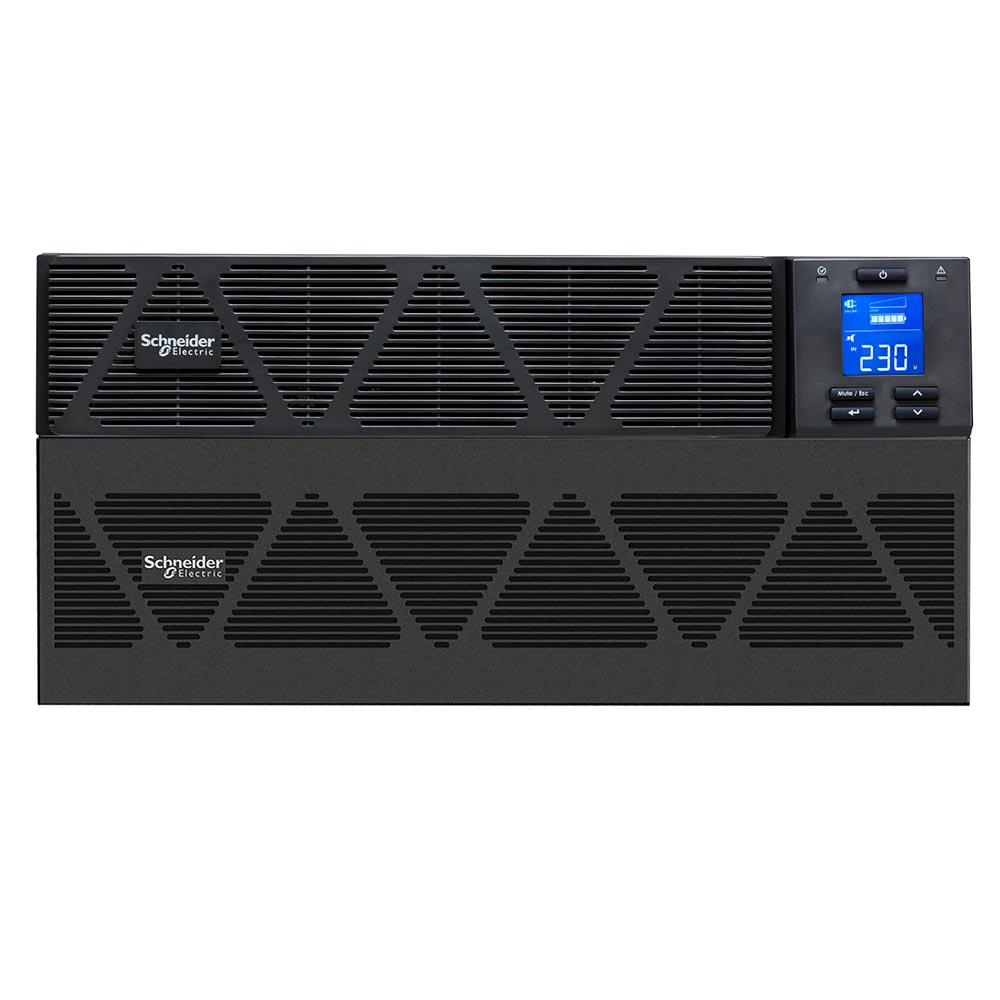

- Multifunction LCD status and control console
- Houses an alarm notifying when on battery and a distinctive low battery alarm, or a continuous tone for an overload alarm
- Internal bypass (automatic and manual)
- 94 % Efficiency at full load
- 2 Years Repair or Replace
Suggested / Optional Accessories
- Easy UPS 1Ph on-line SNMP card - APVS9601
- Easy UPS 1Ph on-line dry contact card - VGLS9901I

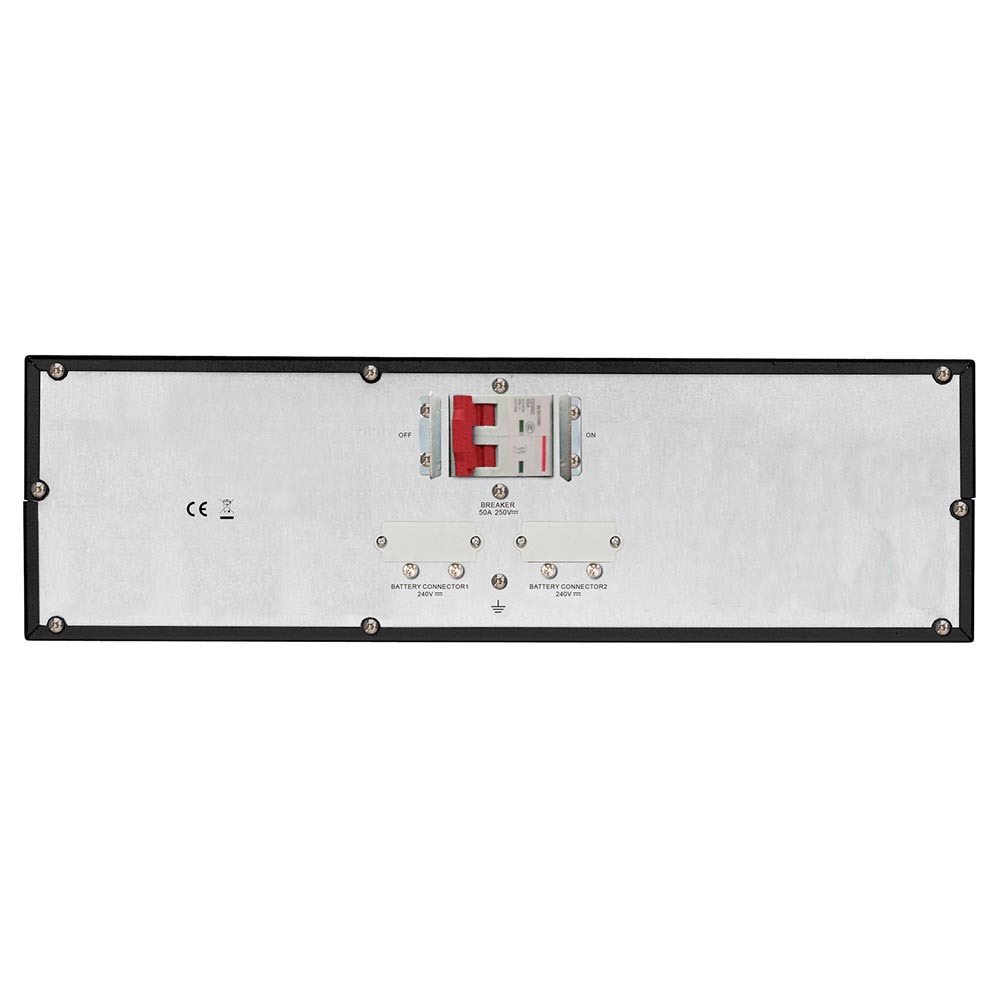

- Easy UPS 1Ph on-line SRVS RM 240 V battery pack for 44357 kVA RM ext runtime model - SRVS240RLBP-9A

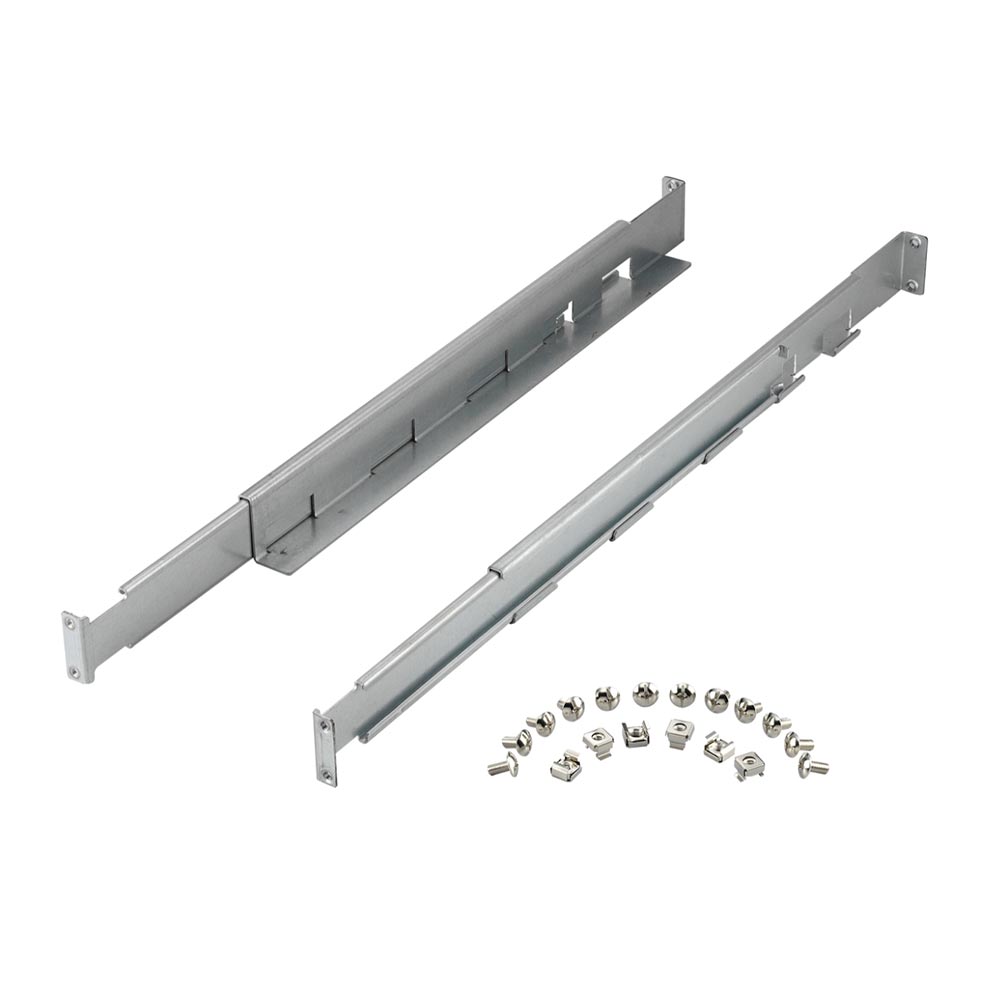

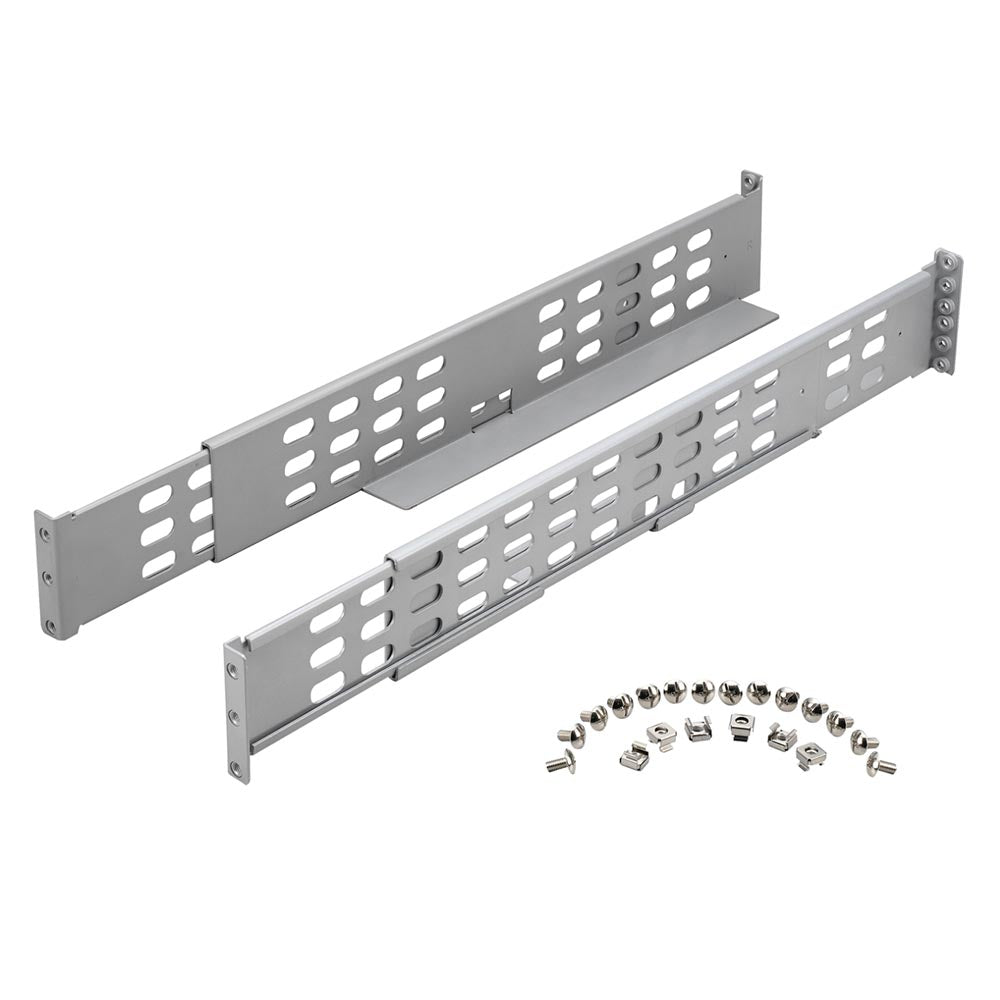

- Compatible with Easy UPS 1Ph on-line rail kit 700 mm - SRVSRK1
What's in the Box
- Basic UPS signalling RS-232 cable
- CD with software
- 1 x DC cable
- Rack mounting brackets
- User manual
- USB cable
Safety Features
- CE Product Certification
- Conformance Standards: EN/IEC 62040-1 and EN/IEC 62040-2
- Is Mercury Free
Technical Specifications
| Colour: |
Black |
| Finish: |
Semi-Matt |
| Battery Type: |
Lead-Acid |
| Battery Voltage: |
240V |
| Battery Charge Time: |
3 hours |
| Battery Life: |
3 - 5 years |
| Battery Charge Power: |
502W rated |
| Display and Signals: |
Multifunction LCD status and control console |
| Waveform: |
Sine Wave |
| Noise Level: |
58 dBA |
| Connection Type: |
Input and Output: Hard wire 3-wire (H N + E) 1 |
| Rated Power: |
10 000V / 10 000VA |
| Input Voltage: |
230V |
| Output Voltage: |
230V |
| Input Voltage Range: |
220 - 230V |
| Output Frequency: |
50/60 Hz +/- 3 Hz sync to mains |
| Height: |
220mm |
| Width: |
438mm |
| Length: |
615mm |
| Operating Temperature: |
0 - 40 °C |
| IP Rating: |
IP20 |
| Weight: |
78kg |
