Product Description
Do you want to create fresh and outstanding highlights in your new bathroom? With Geberit Monolith sanitary modules, you do not have to compromise! After all, truly impressive design comprises not only the aesthetic design, but also the function, the product material and the technology behind it. The Geberit Monolith sanitary modules open up unexpected possibilities when it comes to bathroom design. Whichever colour front cladding you choose for your Geberit Monolith sanitary module, your WC is guaranteed to look elegant.
Product Features
- Dual flush
- Self-supporting
- Adjustable flush volume
- Height is adjustable up to 7cm
- Side cladding made of aluminium brushed
- Cistern, fully insulated against condensation
- Fastening height WC ceramic appliance 35 ± 1 cm
- Compensation of dimensional tolerances possible
- Water supply connection on the bottom, rear centre and possible on the left/right - with accessories
Application
- For installation in front of drywalls or solid walls
- For replacing low-level exposed cisterns and half-high level exposed cisterns
- For connecting the wall hung Geberit AquaClean toilet complete and enhancement solutions, with accessories
- For replacing wall hung toilets with a pressure flushing valve, close-coupled exposed cistern and a concealed cistern with maximum service opening height < 109 cm
What's in the Box
- 1 x Toilet Cistern
- 1 x Base Cover
- Fastening Material
- 2 x M12 Threaded Rods
- 1 x Sound Insulation Set
- 1 x ø 44 / 55mm EPDM Sleeve
- 1 x 160mm Flush Bend Extension
- 1 x ø 90 mm PE-HD Straight Connector
- 1 x ø 90 / 110mm PE-HD Adapter Socket
- 1 x Water supply connection set with 2 angle stop valves, 1/2"
Safety Features
- Cleaning agents containing chlorine or acids, or ones that are corrosive, abradant or scouring, could damage the surface - use only mild cleaning agents and water

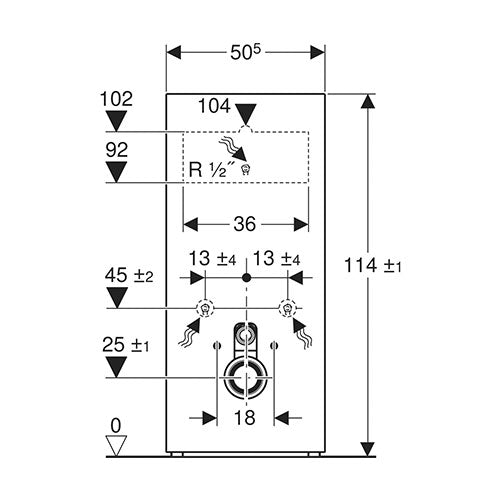

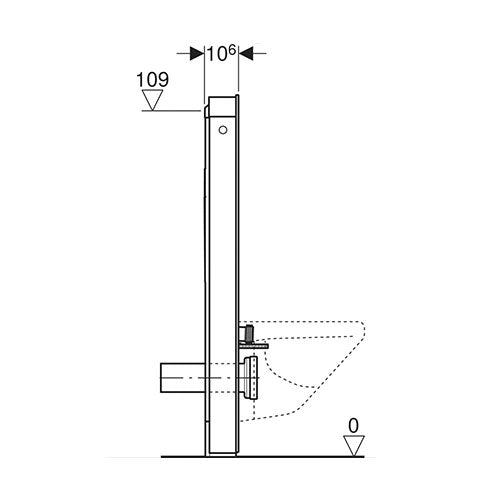

Technical Specifications

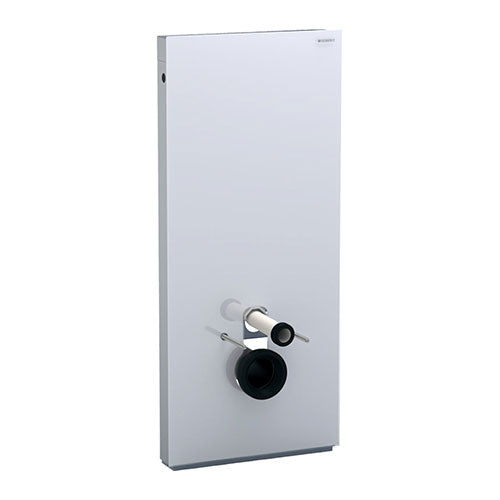

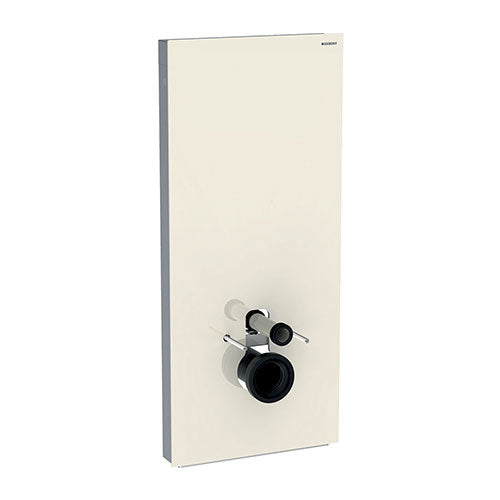

Colour: | Available in White and Sand Grey |
Finish: | Brushed |
Material: | Glass and Black Chrome Aluminium |
Mounting Type: | Wall Hung |
Style: | Modern |
Volume: | Flush Volume
|
Water Pressure: | 0.1 - 10 bar |
Height: | 1140mm |
Width: | 505mm |
Depth: | 106mm |
