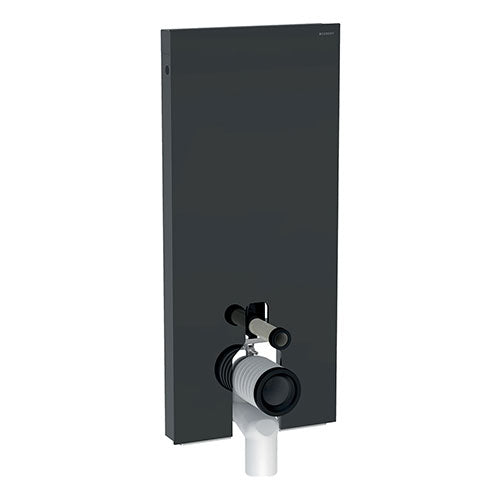

Geberit Monolith Plus for Floor-Standing Toilet 1140mm - Lava
Product Description
The Geberit Monolith Plus sanitary module for WCs is truly multi-talented. The integrated odour extraction unit, intelligent sensor technology and an especially convenient flush actuation are only three of its many virtues.
Product Features
- Dual flush
- Self-supporting
- State-of-the-art technology
- Side cladding made of aluminium brushed
- Cistern fully insulated against condensation
- Compensation of dimensional tolerances possible
- Soft-touch buttons for flush actuation and odour extraction
- Operation with extra-low voltage, no mains voltage in cistern
- Integrated odour extraction unit via quiet fan for pleasant freshness
- Odour extraction unit with ceramic honeycomb filter can be installed without tools
- Day/night detection can be set for orientation light; can be set in seven different colours
- Water supply connection on the rear centre, bottom, and possible on the left/right - with accessories
- Orientation light and odour extraction activated when a user approaches; automatically switches off after a predefined running time
- 2 Year Guarantee
Application
- For installation in front of drywalls or solid walls
- For replacing low-level exposed cisterns and half-high level exposed cisterns
- For connecting the floor-standing Geberit AquaClean Tuma toilet complete solution and Geberit AquaClean toilet enhancement solutions, with accessories
- For replacing wall hung toilets with a pressure flushing valve, close-coupled exposed cistern and a concealed cistern with maximum service opening height < 109 cm
What's in the Box
- 1 x Toilet Cistern
- 1 x Base Cover
- Fastening Material
- 1 x Power Supply Unit
- 1 x ø 44 / 55mm EPDM Sleeve
- 1 x 160mm Flush Bend Extension
- 1 x ø 90 / 110mm PE-HD Adapter Socket
- 1 x Female Socket for Mains Connection
- 1 x ø 90 / 110mm 90° PE-HD Connection Bend
- 1 x Water supply connection set with 2 angle stop valves, 1/2"
Safety Features
- Cleaning agents containing chlorine or acids, or ones that are corrosive, abradant or scouring, could damage the surface - use only mild cleaning agents and water
Technical Specifications
| Colour: | Lava |
| Finish: | Brushed |
| Material: | Glass and Black Chrome Aluminium |
| Mounting Type: | Wall Hung |
| Style: | Modern |
| Water Pressure: | 0.1 - 10 bar |
| Wattage: | 5 W |
| Frequency: | 50 - 60 Hz |
| Nominal Voltage: | 100 - 240V AC |
| Operating Voltage: | 4.1V DC |

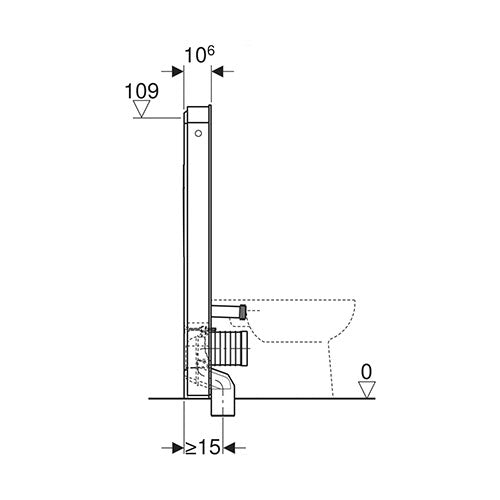

| Height: | 1140mm |
| Width: | 505mm |
| Depth: | 106mm |
| IP Rating: | IPX4 |
