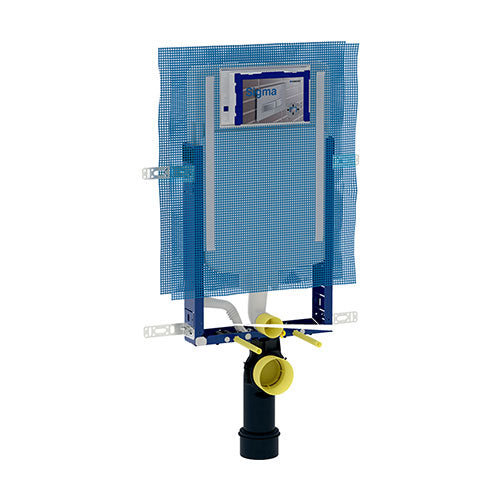

Geberit Kombifix Sigma Concealed Cistern 80mm

Geberit concealed cisterns are the classics of modern bathroom installations and have been installed a million times over, around the world, for more than 50 years. They are known for their proverbial reliability. Every cistern is leak-tested before it is delivered.

Product Features

• Has a powder-coated installation frame
• Pre-mounted direct plastering netting
• Fully insulated against condensation
• Concealed cistern with front actuation
• Immediate post flush possible with factory setting
• With fastening option for electrical connection
• Immediate post flush possible with factory setting
• Tool-free installation and maintenance work on concealed cistern
• Fixing bracket coordinated with solid walls with 8 or 12 cm wall thickness
• Dezincification-resistant water supply connection on the left or rear left
• Fastening for connection bend can be mounted without tools from front
• Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• Protection box for service opening can be cut to length, suitable for surface-even actuator plates
• Actuator plate sold separately

Suggested / Optional Accessories

• Compatible with Geberit Sigma actuator plates

Application

• For masonry walls
• For single flush, dual flush or stop-and-go flush
• For installation in part or room-height pre-wall installations
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011

What's in the Box

• 1 x Toilet Cistern
• 4 x Fixing Brackets
• Fastening Material
• 1 x Protection Box
• 2 x Protection Plugs
• 2 x Threaded Rods (M12)
• 1 x Adapter socket (PE-HD, ø 90 / 110 mm)
• 1 x Connection Set (for WC, ø 90 mm)
• 1 x Connection Bend (PE-HD, ø 90 mm)

Safety Features

• Cleaning agents containing chlorine or acids, or ones that are corrosive, abradant or scouring, could damage the surface - use only mild cleaning agents and water

Technical Specifications
