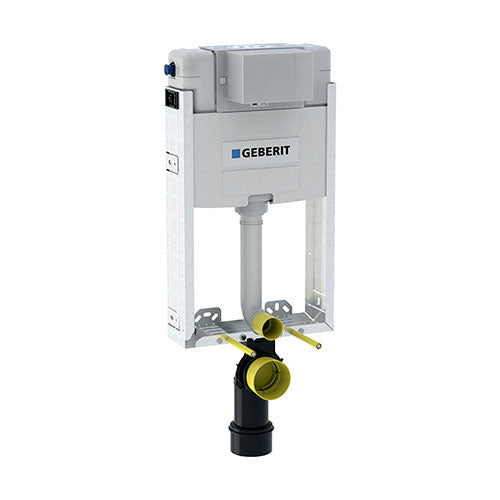

Product Description
Geberit concealed cisterns are the classics of modern bathroom installations and have been installed a million times over, around the world, for more than 50 years. They are known for their proverbial reliability. Every cistern is leak-tested before it is delivered.
Product Features
- Has a zinc-plated installation frame
- Fully insulated against condensation
- Concealed cistern with front actuation
- Immediate post flush possible with factory setting
- Protection box for service opening can be cut to length
- Dezincification-resistant water supply connection on the left or rear left
- Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel
- Actuator plate sold separately
Suggested / Optional Accessories
- Compatible with Geberit Alpha actuator plates
Application
- For dual flush
- For masonry walls
- For installation in part or room-height pre-wall installations
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011
What's in the Box
- 1 x Toilet Cistern
- Fastening Material
- 1 x Protection Box
- 2 x Protection Plugs
- 2 x Threaded Rods (M12)
- 1 x Adapter socket (PE-HD, ø 90 / 110 mm)
- 1 x Connection Set (for WC, ø 90 mm)
- 1 x Connection Bend (PE-HD, ø 90 mm)
Safety Features
- Cleaning agents containing chlorine or acids, or ones that are corrosive, abradant or scouring, could damage the surface - use only mild cleaning agents and water
Technical Specifications
Colour: | White |
Material: | High-Density Polyethylene |
Mounting Type: | In-Wall |
Volume: | Flush Volume
|
Water Pressure: | 0.1 - 10 bar |

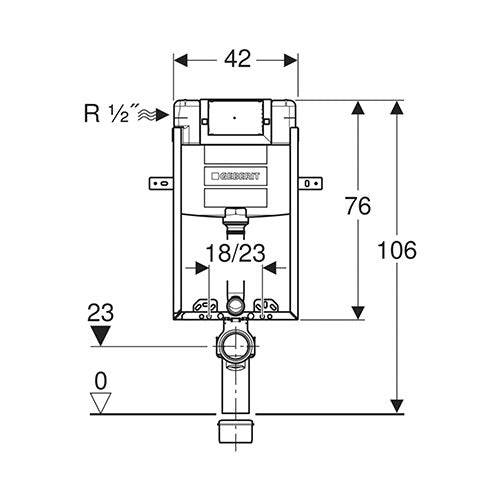

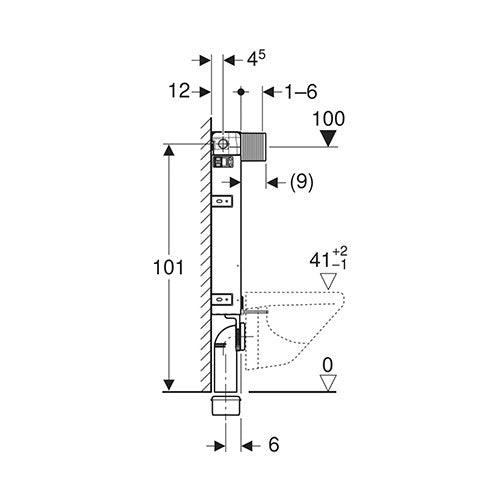

Height: | 1060mm |
Width: | 420mm |
Depth: | 120mm |
