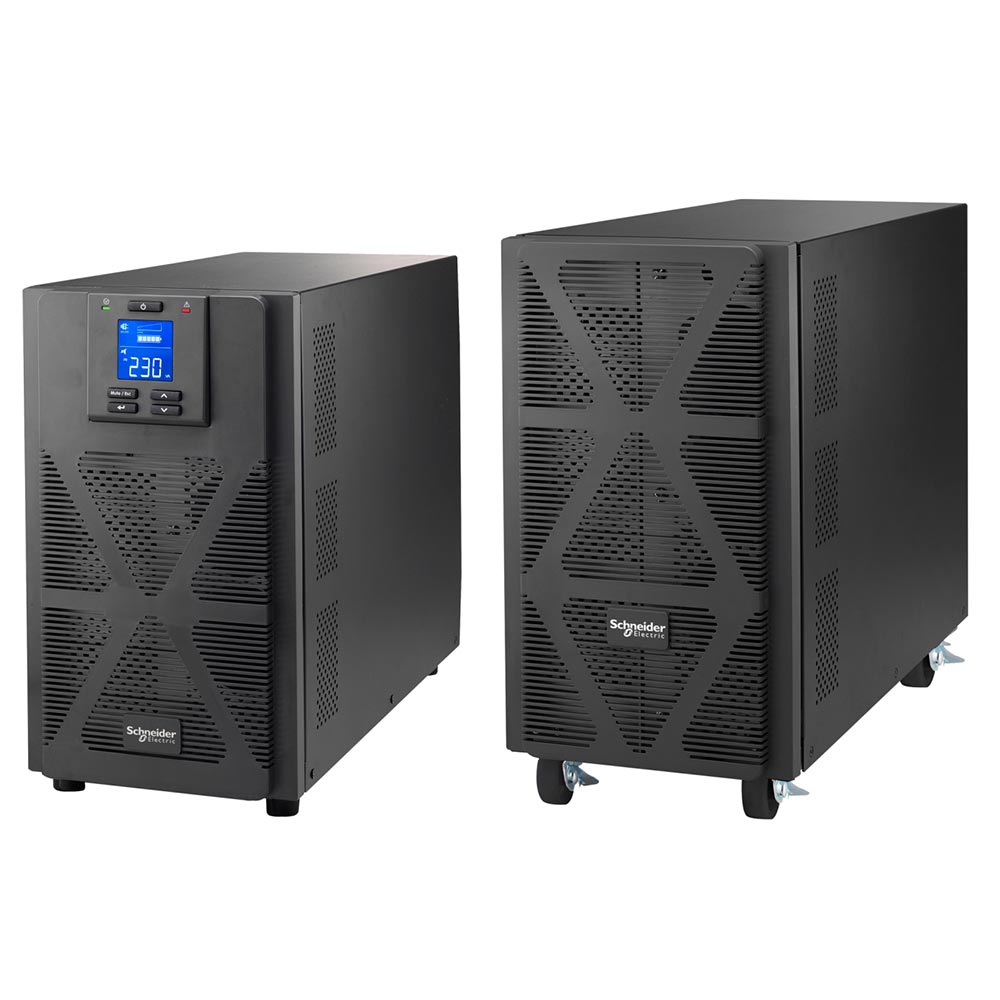

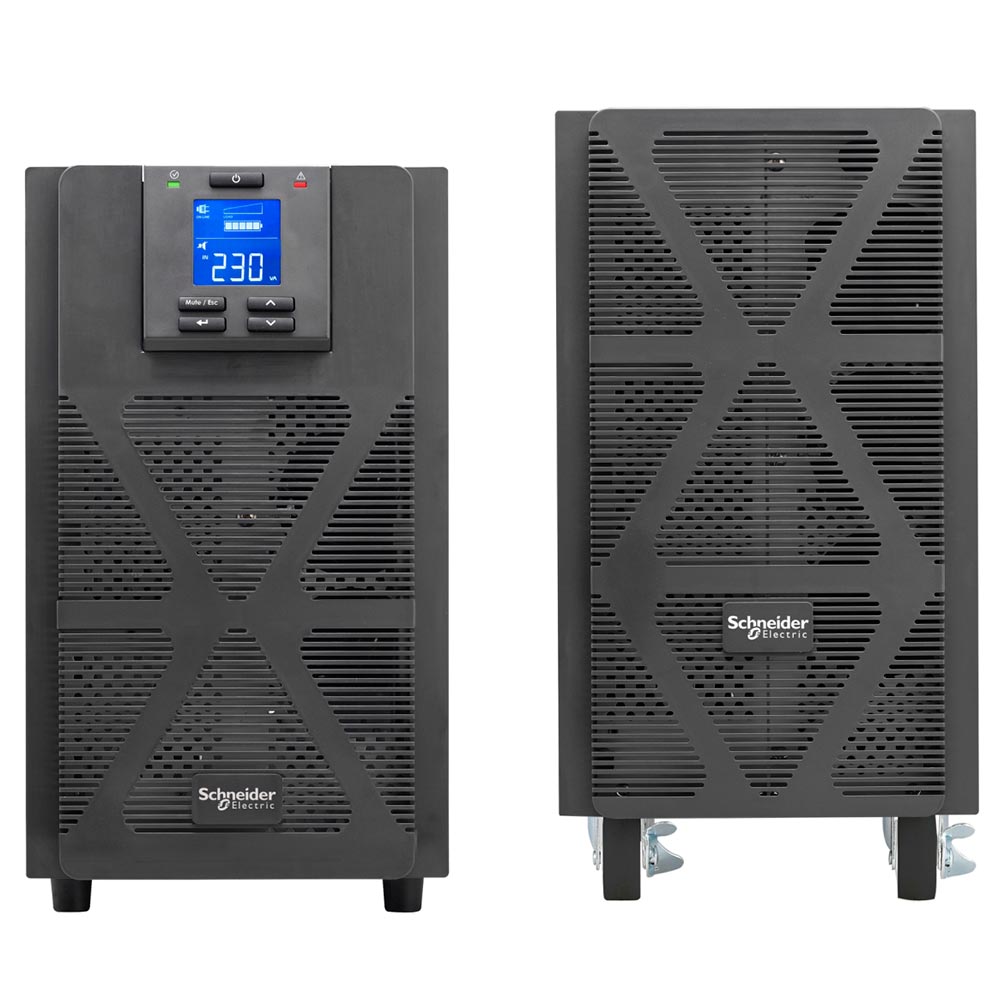

Easy UPS 1Ph on-line SRVS 10000 VA 230 V with external battery pack
Adding product to your cart
Product Description
Easy UPS 1 Ph On-Line provides essential power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments
Product Features
- Ideal for small to medium businesses
- Operates in a vertical mounting position
- Is not rack-mountable
- Uses a 240V Lead-Acid Battery
- Multifunction LCD status and control console
- Houses an alarm notifying when on battery and a distinctive low battery alarm, or a continuous tone for an overload alarm
- Internal bypass (automatic and manual)
- 94% Efficiency at full load
- Has 1 free slot for Communications & Management purposes
- Has an emergency power off
- This is a Double conversion online UPS
- 2 Years Repair or Replace
What's in the Box
- Basic UPS signalling RS-232 cable
- CD with software
- 1 x DC cable
- User manual
- USB cable
Safety Features
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- CE Product Certification
- Conformance Standards: EN/IEC 62040-1 and EN/IEC 62040-2
Technical Specifications
Colour: |
Black |
Finish: |
Semi-Matt |
Plug Type: |
Hard wire 3-wire (H N + E) 1 |
Battery Type: |
Lead-Acid |
Battery Voltage: |
240V |
Battery Charge Time: |
3 hours |
Battery Life: |
3 - 5 years |
Battery Charge Power: |
502W rated |
Display and Signals: |
Multifunction LCD status and control console |
Waveform: |
Sine Wave |
Noise Level: |
58 dBA |
Rated Power: |
10 000W / 10 000VA |
Input Voltage: |
230V |
Output Voltage: |
230V |
Input Voltage Range: |
220V - 240V |
Output Frequency: |
50/60 Hz +/- 3 Hz sync to mains |
Height: |
368mm |
Width: |
380mm |
Length: |
485mm |
Operating Temperature: |
0 - 40 °C |
IP Rating: |
IP20 |
Weight: |
76.5kg |
