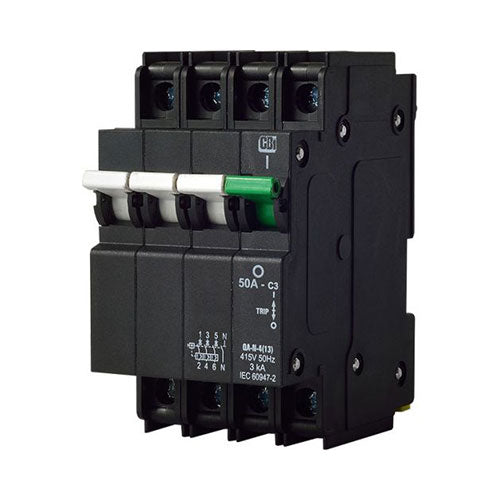

CBi Mini Rail Circuit Breaker 3 Pole + Neutral 3kA - QA-N-4(13)
Adding product to your cart
Product Description
Product Features
- AC Circuit Breakers
- Hydraulic-magnetic technology
- Available in Ratings 5A to 50A breakers to meet your specific needs
- Trip Indication with mid-trip position
- Reset immediately after overload
- Shell design allows for easier installation onto busbar
Safety Features
- Miniture Circuit Breakers should be installed by a trained professional to prevent any damages or injury caused by incorrect installation
Technical Specifications
| Colour: |
Black |
| Material: |
Plastic |
| Handle Colour: |
White and Green Neutral Handle |
| Mounting Type: |
Mini Rail |
| Number of Modules: |
4 |
| Poles: |
3 + Neutral |
| Curve: |
3 |
| Protection Type: |
Overload and short circuit protection |
| Escutcheon: |
57mm |
| Current: |
Available ratings range from 5A to 50A |
| kA Rating: |
3kA |
| Height: |
92.8mm |
| Width: |
52mm |
