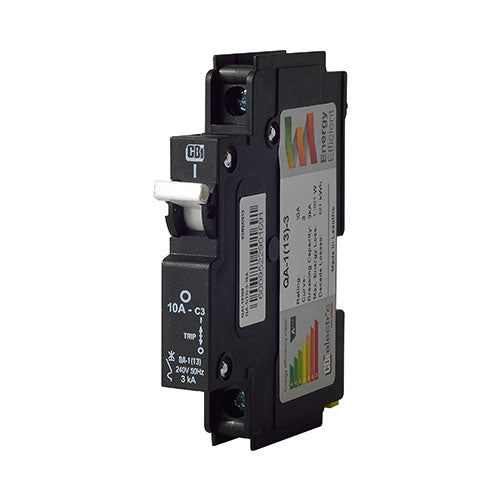

CBi Mini Rail Circuit Breaker 1 Pole 3kA - QA-1(13)
Adding product to your cart
Product Description
Product Features
- AC Circuit Breakers
- Hydraulic-magnetic technology
- Available in Ratings 5A to 60A breakers to meet your specific needs
- Trip Indication with mid-trip position
- Reset immediately after overload
- Shell design allows for easier installation onto busbar
Safety Features
- Miniture Circuit Breakers should be installed by a trained professional to prevent any damages or injury caused by incorrect installation
Technical Specifications
| Colour: |
Black |
| Material: |
Plastric |
| Handle Colour: |
White |
| Mounting Type: |
Mini Rail |
| Number of Modules: |
1 |
| Poles: |
1 |
| Curve: |
3 |
| Protection Type: |
Overload and short circuit protection |
| Escutcheon: |
57mm |
| Current: |
Available ratings range from 1A to 60A |
| kA Rating: |
3kA |
| Height: |
92.8mm |
| Width: |
13mm |
| Weight: |
102g |
Technical Documents
