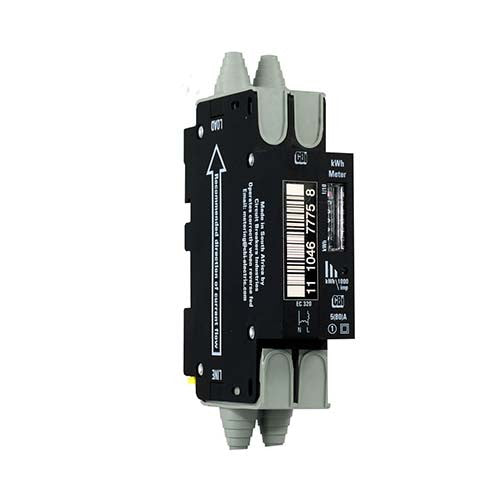

CBi Ecolec Rail Mount Meter 57mm 2 Module 5(80)A
Adding product to your cart
Product Description
Product Features
- IEC 61036 class 1 electricity meters
- Single phase alternatives
- Fits all Mini and DIN Rail Distribution boards
- 7 digits indication of energy consumed to 1 / 10 kWh
- Dual colour lamp shows rate of consumption and/or confirms presence of incoming supply
- Supplied with anti-tamper terminal protection plugs
Technical Specifications
| Colour: |
Black |
| Material: |
Plastic |
| Mounting Type: |
Dual Mount |
| Measurement accuracy: |
Class 1 |
| Escutcheon: |
57mm |
| Current Operating Range: |
0.015 - 125A |
| Voltage: |
230V AC |
| Frequency: |
50/60hZ |
| Phase: |
1 + Neutral |
| Height: |
107mm |
| Width: |
26mm |
| Depth: |
66mm |
| Operating Temperature: |
-40 °C to +75 °C |
| Weight: |
158.5g |
