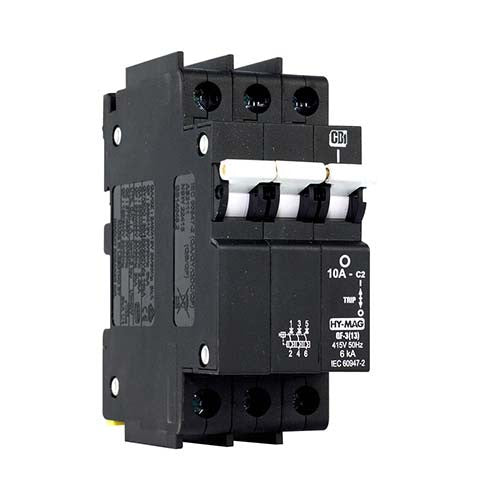

CBi Dual Mount Circuit Breaker C1 3 Pole 6kA - QF-3(13)
Adding product to your cart
Product Description
Product Features
- Dual Mount design fits both DIN and Samite Rail DB Boards
- Protection Type: overload and short circuit protection
- Ratings available in 5A to 25A
- Can be switched on immediately after tripping
- Trip indication with mid-trip position
- Shell designed for easier installation onto busbar
- AC circuit breaker
- Hydraulic-magnetic technology
Application
- AC branch circuit protection
- Telecom / datacom equipment
- Lighting control
- UPS equipment
- Alternative energy equipment
- Mobile power generation equipment
- Railway signaling equipment
- Residential equipment
- Industrial equipment
Safety Features
- Miniture Circuit Breakers should be installed by a trained professional to prevent any damages or injury caused by incorrect installation
Technical Specifications
| Colour: |
Black |
| Material: |
Plastic |
| Handle Colour: |
Orange |
| Mounting Type: |
Dual Mount |
| Number of Modules: |
3 |
| Poles: |
3 |
| Curve: |
1 |
| Protection Type: |
Overload and short circuit protection |
| Escutcheon: |
57mm |
| Current: |
Ratings available in 5A to 25A |
| kA Rating: |
6kA |
| Height: |
97.2mm |
| Width: |
39mm |
| Weight: |
306g |
