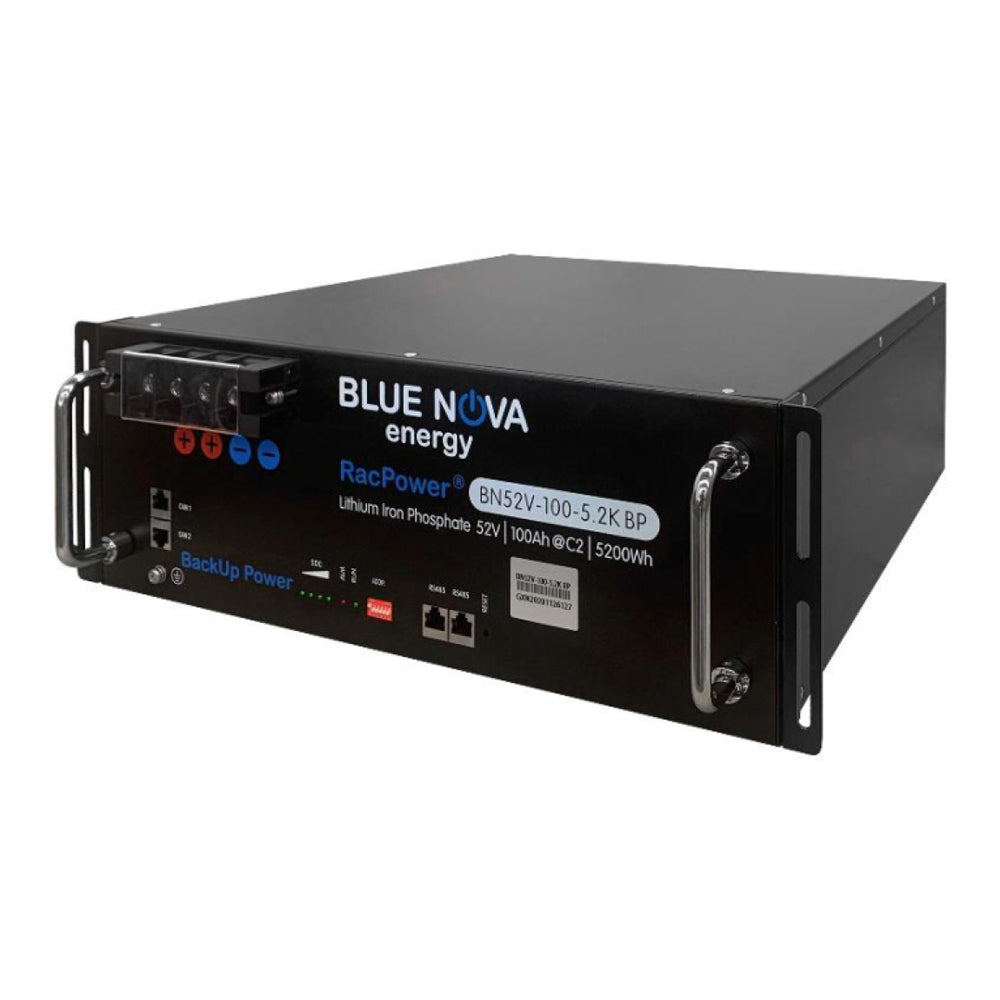

BlueNova RacPower Lithium-Ion Phosphate Backup Power Battery 52V 100Ah 5.2kWh
Adding product to your cart
Product Description
The RacPower batteries are 48V system-compatible & have been designed for installation in 19” server cabinets. Developed specifically to support business and telecommunications industries, a single 5.2k Daily Use unit can supply a sustained 2000W for a typical 2.5 hour load-shedding cycle.Up to 6 x BN52V-100-5.2k BP units (31kWh) & up to 9 x BN52V-100-5.2k DU units (46kWh) can be connected in parallel.The BN52V-100-5.2k BP is perfectly suited for voltage-based installations, with optional CryptoLock functionality to ensure that battery theft and redeployment is a thing of the past.
Product Features
- Designed for daily cycling applications
- Ultra-reliable Lithium Iron Phosphate Technology
- High Performance:
- Power output = 5.2kW (continuous)
- Fully rechargeable in 2 hours
- Robust & Durable:
- Can be discharged to 100% DoD
- Performance cycle life > 4000 cycles
- Inverter combability:
- Serial communication (CAN/RS485) compatible with leading inverter manufacturers
- Compatible via voltage-based setup with all other pure sine wave inverters
- 10 Year Warranty
Application
- For use in 19" (11U) server racks
Safety Features
- Product installation should be performed by a qualified electrical technician or authorised Blue Nova representative only.
- 52V RacPower User Manual.pdf
Technical Specifications
| Colour: |
Black |
| Material: |
Metal |
| Battery Chemistry: |
LiFePO4 (Lithium Iron Phosphate) |
| Internal Resistance: |
≤ 50mΩ @1kHz AC |
| Serial Communication: |
CAN and RS485 |
| Wattage: |
5.2kW |
| Installed Capacity @ Vnom: |
5120Wh |
| Ah Rating: |
100Ah @C3, 25°C |
| Charge Current: |
50A continuous | ≤ 30A recommended |
| Discharge Current: |
100A for 30 mins (max) | ≤ 70A recommended |
| Bulk Voltage: |
57.6V ± 0.3V (max) |
| Float Voltage (Recommended): |
54.0V ~ 55.2V |
| Low Voltage (Min.): |
40.0V |
| Nominal Voltage: |
51.2V |
| Operating Voltage: |
40.0V ~ 57.6V |
| Self-discharge Rate: |
Residual capacity: ≤ 3% /month | ≤ 15% /yearRecover capacity: ≤ 1.5% /month | ≤ 8% /year |
| Height: |
153mm |
| Width: |
446mm |
| Depth: |
435mm |
| Front Plate Height: |
481mm |
| Front Plate Length: |
153mm |
| Operating Temperature: |
@Charge: 0°C ~ +50°C @Discharge: –10°C ~ +50°C |
| Recommended Operating Environment: |
Temp. range: +15 ~ +35°C | Humidity: 5 ~ 75%RH |
| Storage Environment (Stored ≤ 1 Month): |
Temp. range: –20 ~ +60°C | Humidity: 5 ~ 75%RH |
| Storage Environment (Stored ≥ 3 Months): |
Temp. range: +10 ~ +45°C | Humidity: 5 ~ 75%RH |
| Weight: |
46kg |
