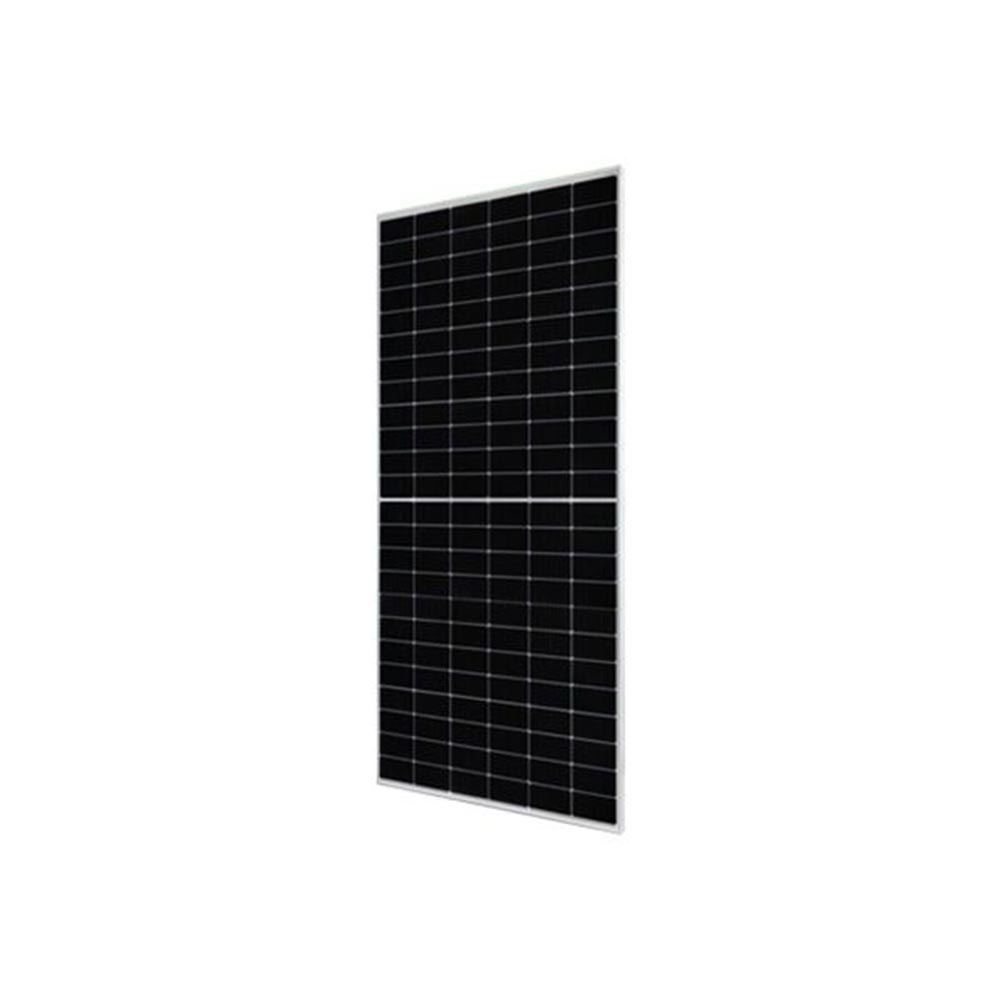

JA Solar 540w Mono PV Module Multi-Busbar Half-Cell Black
Product Description
Assembled with 11BB PERC cells, the half-cell configuration of the modules offers the advantages of high power output, better temperature-dependant performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading
Product Features
- Higher output power
- Lower LCOE (Levelised Cost of Energy) meaning a lower lifetime cost due to the amount of energy produced
- Less shading and lower resistive loss
- Better mechanical loading tolerance
- The superior warranty offering 0.55% Annual Degradation Over 25 Years
- Important: All solar products and power systems, and their components must be installed by appropriately qualified Installers to make sure that the products are safely installed and meet Local regulations and compliance
- Country of Origin: China/Vietnam
-
- 12 Year Product Warranty
- 25 Year Linear Power Output Warranty
Safety Features
- Comprehensive Certificates:
- IEC 61215, IEC 61730
- ISO 9001: 2015 Quality management systems
- ISO 14001: 2015 Environmental management systems
- ISO 45001: 2018 Occupational Health and safety management systems
Technical Specifications
| Cell Type: | Mono |
| Number of Cells: | 144 (6x24) |
| Connection Type: | Genuine MC4-EVO QC4.10-35/45 |
| Load (Max.): | Static - 3600Pa, 1.5 |
| Load (Min.): | Static - 1600Pa, 1.5 |
| Series Fuse (Max.): | 25A |
| System Voltage (Max.): | 1500V DC (IEC) |
| PV Junction Box: | IP68, 3 diodes |
| Normal Operating Cell Temperature (NOCT): | 45 ± 2°C |
| Width: | 1134±2mm |
| Length: | 2279±2mm |
| Depth: | 35±1mm |
| Cable Length: | Including Connector: |
| Cable / Wire Size (sq.): | 4mm² (IEC), 12AWG (UL) |
| Operating Temperature: | (-)40°C ~ +85°C |
| Fire Protection: | UL Type 1 |
| Safety Class: | II |
| Weight: | 28.6kg±3% |
Technical Documents
| Technical Document: | Download |
